GL Portable Oil Filtration & Adding Machine
GL Portable Oil Filtration & Adding Machines are widely applicable at electric power plants, power stations, oil stations and industrial and mining enterprises for filtering mechanical oil, hydraulic oil, compressor oil, turbine oil, insulatingoil, gasoline the diesel engine oil and other low viscosity lubricants, In order to meet the requirements of the machine to produce and process edible oils, Meiheng Company has a series of stainless steal machines for choosing. The amount of oil refueled and exhausted can be measured precisely by additional metric compressor gun.
Download
Description
Advantages
- The machine is portable and light, simple operated.
- No need for filter paper and will not pollute the working place, while it is not expensive.
- Precise four stage filtering system can filter the mechanical impurities as well as satisfy the need of long distance and high-lift of filling and pumping
- It is suitable for oil filling and replenishing, impurities filtration for switches, mutual inductors, machine tools which require less amount of oil.
- Accoring to different needs, it can be refitted to different special types such as anti-explosion types, metric types, and anticorrosive types. GL special types and stainless steel type can filter special media liquids.

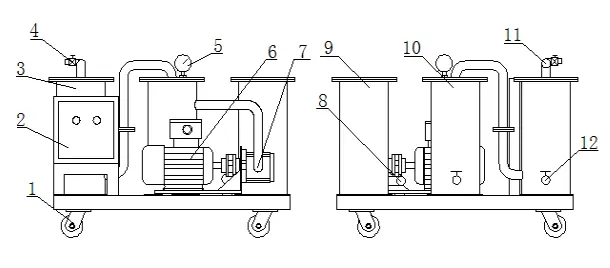

Technological Flow Chart And Working Principle
| Figure No. | Name | Figure No. |
|
| 1 | Casters | 9 | Primary filter |
| 2 | Control box | 10 | Secendary filter |
| 3 | Filtering | 11 | Oil outlet |
| 4 | Sample capacity | 12 | Drain valve |
| 5 | Pressure guage |
|
|
| 6 | Motor |
|
|
| 7 | Oil pump |
|
|
| 8 | Oil inlet |
|
Technical Data & Selection Guide
| Type | Flow Rate (L/min) | Lift (m) | Suction (m) | Filtering Precision (um) | Motor Power (Kw) | Overall Dimension (mm) | ||
| L | W | H | ||||||
| GL-32 | 32 | 15 | 5 | 0.5~15 | 0.55 | 650 | 500 | 520 |
| GL-50 | 50 | 15 | 5 | 0.5~15 | 0.75 | 650 | 500 | 520 |
| GL-80 | 80 | 15 | 5 | 0.5~15 | 1.1 | 750 | 600 | 650 |
| GL-100 | 100 | 15 | 5 | 0.5~15 | 1.1 | 750 | 600 | 650 |
| GL-150 | 150 | 15 | 5 | 0.5~15 | 7.5 | 800 | 650 | 700 |
| GL-200 | 200 | 15 | 5 | 0.5~15 | 2.2 | 750 | 680 | 720 |
| GL-250 | 250 | 15 | 5 | 0.5~15 | 2.2 | 780 | 680 | 720 |
| GL-300 | 300 | 15 | 5 | 0.5~15 | 3 | 800 | 700 | 720 |
