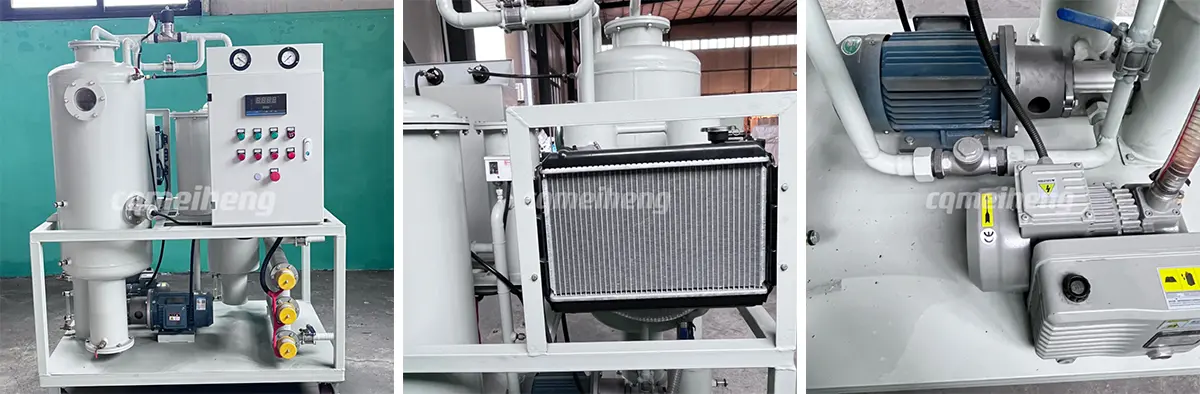

TL Steam Turbine Oil Appropriative Oil Purifier
This lubricating oil purifier is used for the regeneration treatment of high precision lubricating oils such as used hydraulic oil, refrigerator oil, antiwear hydraulic oil etc. Lubricating oil purifier suitable for petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railways and other industries of various lubrication purification regeneration.
Download
Description
Features
Turbine Oil Purification Machine Gear Oil Purifier deals with unqualified emulsified industrial oil such as mechanical oil, hydraulic oil, compressor oil and refrigerating oil, which can quickly and effectively remove the water, gas, impurities and volatile oil (such as alcohol, gasoline, ammonia Gas, etc.), restore the oil viscosity, flash point and performance. After treatment, the emulsified oil has low emulsification value, very little water content and high impurity precision, and can be reused repeatedly in domestic and overseas high-precision hydraulic lubrication equipment.
Technical Data
- Vacuum System:
By vacuum tank, vacuum pumps, condensate tanks, fluid tanks, air-filling system.
Optimized structure design, greatly increasing the surface area of the oil in the vacuum system, and maximizing oil travel in a vacuum system. The oil in the water and gas are fully overflowed. This machine adopts advanced defaming system so oil filter at work will not appear similar products widespread phenomenon of injection.
2.Filtration system:
Using three filter, coarse filter inlet to protect the pump and extend the life of the main filter. After the pump has two fine filter, so the oil quickly reach high cleanliness. Using special gradient filter pore glass fiber material that can be layered filter particles of different size, which greatly improved the life of the filter. The filter has a perfect structure, which can effectively reduce the surface velocity filter, access to stable filtration accuracy.
- Heating system:
Segmented gradual heating surface heat load is small 1.0W / cm2, the oil does not overheat causing deterioration. Oil temperature can be adjusted at 0 ~ 100 ℃, automatic control, and a protective device, the amount of oil is too low today automatically stop working, to avoid damage caused by dry heater.
- Automatic control system:
The machine uses the frequency, level transmitters, temperature sensors, vacuum degree sensing instrument, such as a series of automatic control instruments of various information acquisition device run by the central processor for processing, automatic control of the whole equipment run and monitor the operational status of equipment. The unit comes with a variety of protective devices (overload, overvoltage protection, phase sequence protection, abnormal operation shutdown protection) to ensure safe operation of equipment.
- The whole structure:
Machine integration bridge structure, reducing the volume. Holistic removable tank, ensure that the ground without oil operations, reduce environmental pollution. There are mobile, fixed, fully enclosed, vehicle type, and so many models to choose from.
| Item | Unit | TL-10 | TL-20 | TL-30 | TL-50 | TL-100 | TL- 150 | TL-200 | TL-300 |
| Flow rate | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
| Working vacuum | Mpa | -0.06 ~- 0.095 | |||||||
| Working pressure | Mpa | ≤0.4 | |||||||
| Temperature degree | ℃ | 0~100 | |||||||
| Power supply |
| 380V/50HZ/3Ph 5 wire(as customer's requirement) | |||||||
| Working noise | dB(A) | ≤65~80 | |||||||
| Working time | H | ≥ 4000 | |||||||
| Continuous working time | H | 150 | |||||||
| Electric heating degree | kW | 12 | 15 | 18 | 24 | 45 | 60 | 72 | 84 |
| Total electric power | kW | 14 | 17 | 20 | 27 | 48 | 66 | 81 | 97 |
| Outlet(inlet)caliber | mm | Φ25 | Φ25 | Φ25 | Φ32 | Φ42 | Φ50 | Φ50 | Φ60 |
| Weight | kg | 400 | 450 | 500 | 600 | 800 | 1000 | 1100 | 1550 |
|
Size | L(mm) | 1500 | 1550 | 1600 | 1650 | 1700 | 1750 | 1900 | 2000 |
| W(mm) | 800 | 850 | 900 | 950 | 1000 | 1200 | 1300 | 1350 | |
| H(mm) | 1600 | 1650 | 1700 | 1750 | 1800 | 1800 | 2000 | 2100 | |
| Moisture content | ≤50PPM | ||||||||
|
Index after filtering | Gas content | 0.1% | |||||||
| Demulsification value | ≤15min | ||||||||
| Degree of cleanliness(NAS 1638) | 4 | ||||||||
| Impurity size | ≤1μm((Customerizable) | ||||||||
Index Performance
| No | Item | Data |
| 1 | Flow Rate | 10-300 LPM |
| 2 | Mechanical impurities | NO |
| 3 | Demulsibility number | ≤15 Min |
| 4 | Moisture | 50-80 ppm |
| 5 | Gas content | ≤0.1 % |
| 6 | Cleanness-degree | ≤6 |
| 7 | Filter precision | 5-10 um |
Features
- This device is aimed at the turbine oil lubrication system dilute oil station and fuel tank - dehydration, degassing, impurity removal ,it can improve the lubrication system cleanliness.
- Turbine oil vacuum oil filter maximum capacity to meet more than 200 tons of single lubrication system purification treatment.
- The turbine oil vacuum filter can effectively remove not only 100% free water and 99.9% dissolved water but also100% free gas and 98% dissolved water.The treated oil can meet the national standard .
