LK Phosphate Fire Resistant Oil Purifier
Phosphate Fire resistant oil purifier to remove Water and Particles is especially designed for fire-resistant oil with suitable material for vacuum dehydration, particles-removal and acid-reduction. It has simple structure with multi-stage filters to remove particles to NAS grade 5.
Download
Description
Product Parameter
| tem | Unit | LK-20 | LK-30 | LK-50 | LK-80 | LK-100 | LK-150 | LK-200 |
| Flow Rate | L/min | 20 | 30 | 50 | 80 | 100 | 150 | 200 |
| Total Power | KW | 15 | 18 | 27 | 30 | 36 | 48 | 60 |
| Heating Power | KW | 17 | 23 | 30 | 35 | 42 | 56 | 68 |
| Working Temperature |
| 30 ~ 90 | ||||||
| Vacuum Range | Mpa | -0.06 ~ -0.095 | ||||||
| Working Pressure | Mpa | ≤0.5 | ||||||
| Power Supply |
| Three phase 380V 50Hz (can be customized) | ||||||
| Inlet(outlet) Diameter | mm | Φ25 | Φ32 | Φ32 | Φ42 | Φ42 | Φ48 | Φ48 |
| Net Weight | kg | 250 | 350 | 500 | 700 | 900 | 1100 | 1400 |
Product Feature And Application
- Stainless steel and special airproof material to ensure non-leakage and non-erosion.
- It is designed for phosphate ester. Low temperature operation and total physical purification will not bring about any additional damage. The absorption function can highly reduce operating cost.
- It is light and easy to move. It can filter online as well as switch moving.
- It is a multi-function purifier and has the ability to remove gas water, impurity, bubbles and acid as well as break emulsion.
It is highly automatic and has high pressure protection, infrared liquid level control system, chain alarms and online operation. Safe and easy. - It is highly automatic and has high pressure protection, infrared liquid level control system, chain alarms and online operation. Safe and easy.

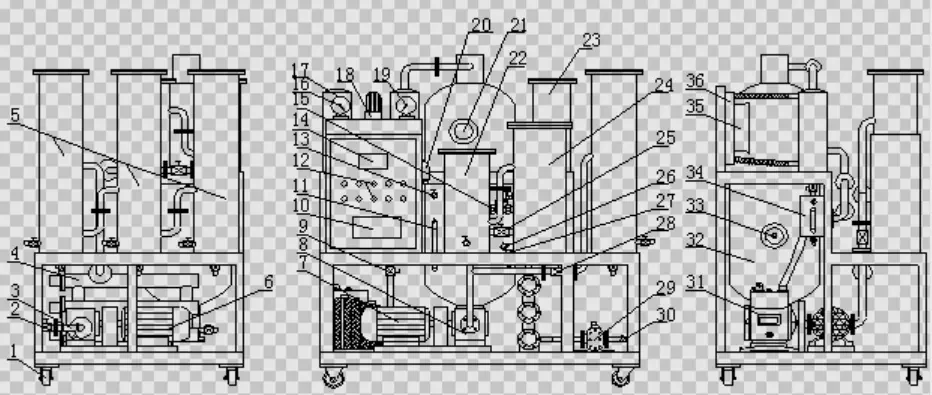

Production Details
Product Qualification
Delivery, Shipping And Serving
We are oil purifier and filter element manufacturer for more 20 years located in Chongqing province. Quality first is the ultimate purpose of our company. We are willing to cooperate with domestic and foreign customers, to provide you with the highest quality products and perfect service! If you need, warmly welcome to contact me.
FAQ
Q1: Why should you buy from us not from other suppliers?
A1: We have self-own factory for better quality control and cost save and offer the best solution with competitive price by sourcing in China.
Q2: How long will it take to receive my product?
A2: In general, it will take you 10-15 days to get it.
Download
