GDL Precision Filteration Oiling Machine
Widely used in transportation, machinery, electric power, petrochemical, metallurgy and other industries. It is used for deep filtering of various lubricating oils such as insulating oil, gear oil, mechanical oil, hydraulic oil, compressor oil, refrigerator oil, and spindle oil.
Download
Description
Advantages
- Precise filtration system, multi-stage filtration, step-by-step encryption, large dirt holding capacity, can effectively remove mechanical impurities in oil, and high filtration accuracy.
- Produced with materials compatible with water-glycol synthetic lubricants and mineral oil. Filters at all levels are fastened with quick-connecting fastening bolts for easy cleaning of the filters.
- High-quality filter media, acid and alkali resistance, high temperature resistance, good mechanical strength and long service life.
- Small size, light weight, low price and wide application. Compared with the ordinary pressure oil filter, no filter paper is needed and the site is not polluted. The cart-type design is convenient and flexible to use.

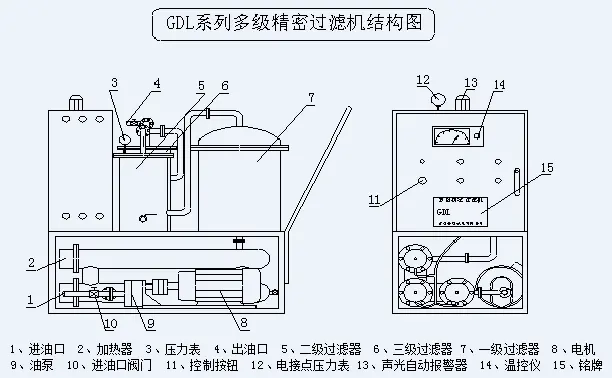

Technological Flow Chart And Working Principle
| Figure No. | Name | Figure No. |
|
| 1 | Inlet oil | 9 | Oil pump |
| 2 | Heater | 10 | Inlet oil valve |
| 3 | Pressure gauge | 11 | Control button |
| 4 | Outlet oil | 12 | Pressure gauge |
| 5 | Secondary Filter | 13 | Auto alarm |
| 6 | Tertiary filter | 14 | Temperature control |
| 7 | Primary Filter | 15 | Nameplate |
| 8 | Motor |
|
Working Principle:
Pressure plate and frame oil filter is a former old product with a slower filtering speed. This model uses filter paper as a filter material for filtering. Filter paper is a consumable and must be replaced after a period of use. After a long period of filtration, the fine filter paper powder will be mixed into the oil, which will contaminate the oil and bring difficulties to the future oil treatment.
The GDL series multi-stage precision filter produced by our company is the replacement of pressure plate and frame oil filter. Its filtration speed is twice that of pressure oil filter. It uses polymer magnetic material as the filter material and has high filtration accuracy. For pumping, refueling and increasing the lift. The price is the same as the pressure oil filter, which is the most ideal product for your company.
Technical Data & Selection Guide
| Parameter | Unit | GDL-30 | GDL-50 | GDL-80 | GDL-100 | GDL-150 | GDL-200 | GDL-300 | GDL-400 |
| Flow rate | L/min | 30 | 50 | 80 | 100 | 150 | 200 | 300 | 400 |
| Heating Power | Kw | 15 | 18 | 24 | 27 | 30 | 36 | 54 | 60 |
| Total Power | Kw | 16 | 20 | 26 | 30 | 33 | 40 | 60 | 66 |
| Working Temperature | C | 30~90 | |||||||
| Working Pressure | MPa | ≤0.5 | |||||||
| Filtering Precision | um | ≤3~15 | |||||||
| Power Supply |
| Three phase 380V 50Hz (can be customized) | |||||||
| Inlet(Outlet) Diameter | mm | Ø25 | Ø32 | Ø32 | Ø42 | Ø48 | Ø48 | Ø60 | Ø76 |
