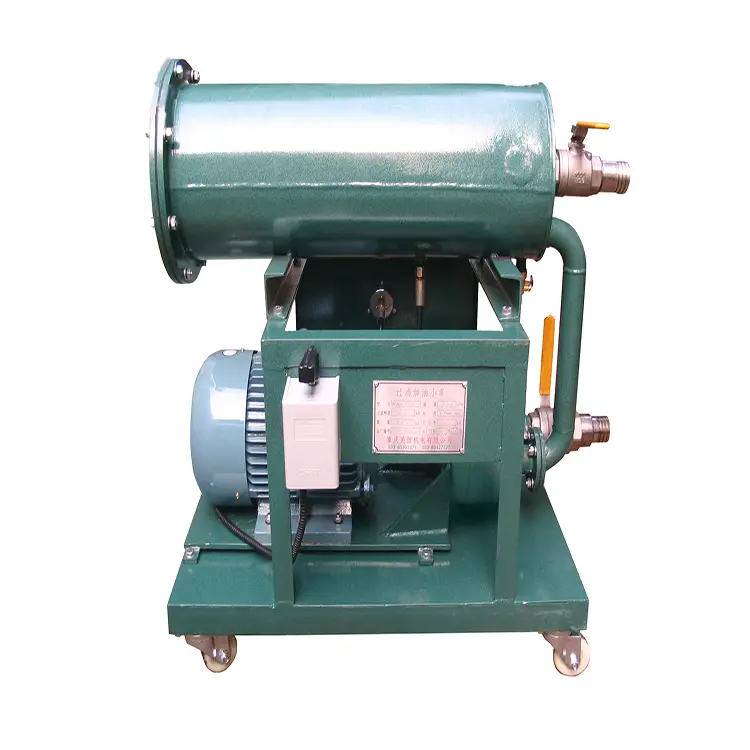

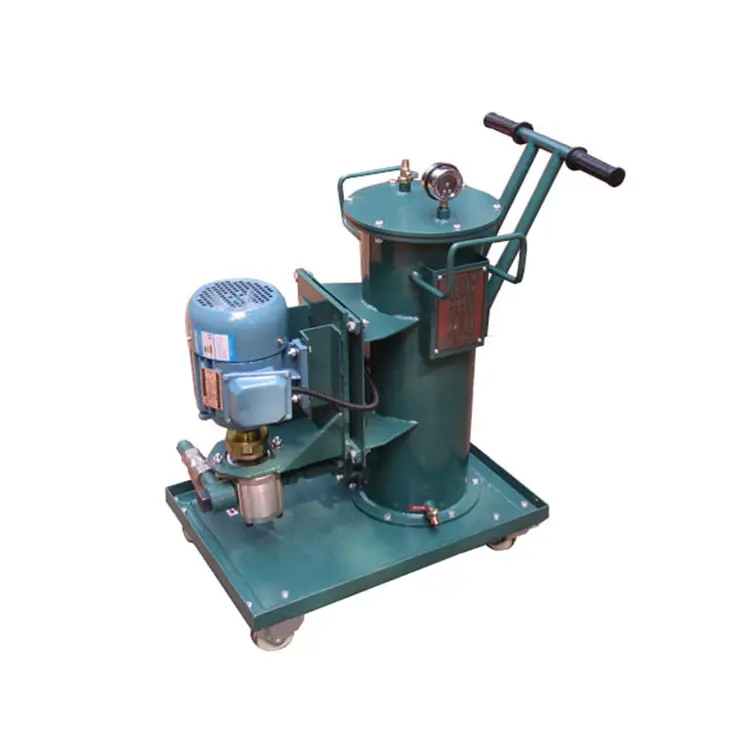

FLUC Oilfiltration & Feeding Trolley
FLUC Oil Filtration and Fedding Trolley is widely used for processing the transformer oil, compressor oil, refrigerator oil, turbine oil, gasoline and diesel engine oil and other lower viscosity lubricants, which come from electric power plants, power station, oil depots, industries and mining enterprises etc.
Download
Description
Advantages
- The machine is portable and light, simple operated.
- No needfor filter paper and will not pollute the working place, while it is not expensive.
- Precise four-stage filtering system can filter the mechanical impurities as well as satisfy the need of long distance and high-lift oil filling and pumping.
- It is suitable for oil filling and replenishing, impurities filtration for switches, mutual inductors, machine tools which reuire less amount of oil.
- According to different needs, it can be refitted to different special types such as anti-explosion types, metric types, and anticoorosive types. FLUC special types and stainless steel type can filter special media liquids.
Technological Flow Chart And Working Principle
 |  |
| Item | Description | Features | Qty | Manufacturer |
| 1 | Pre-filter | Stainless steel strainer for filtering large particles of impurities for easy cleaning and replacement. | 1pcs | CQMeiheng |
| 2 | Filter | The deep-level, multi-stage filtration structure, the combination of mesh filtration and polymer adsorption replaces the traditional pure mesh filtration, and its efficiency is 5-8 times higher than that of the general oil filter. | 1pcs | CQMeiheng |
| 3 | Oil pump | Precise oil pump with low noise and environmental protection requirements。 | 1unit | CQMeiheng |
| 4 | Motor | The motor matched with the oil pump can handle any working condition required for the smooth and safe operation of the oil pump. | 1unit | CQMeiheng |
| 5 | Pressure gauge | Automatically displays the degree of contamination of the filter element. | 1pcs | CQMeiheng |
| 6 | Switch | Energy saving | 1pcs | CQMeiheng |
| 7 | Caster | Portable | 4pcs | CQMeiheng |
| 8 | Drain oil valve | Single valve | 1pcs | CQMeiheng |
| 9 | Main valve |
| 1pcs | CQMeiheng |
Technical Data & Selection Guide
| Parameter | Unit | FLUC-50 | FLUC-80 | FLUC-100 | FLUC-150 | FLUC-200 | |
| Rated Flow Rate | L/min | 50 | 80 | 100 | 150 | 200 | |
| Motor Power | Kw | 0.75 | 1.1 | 2.2 | 3 | 4 | |
| Maximum Working Pressure | MPa | 0.5 | |||||
| Filtering Precision | um | 5~15. Or be customized. | |||||
| Lift | m | 15 | |||||
| Suction | m | 5 | |||||
| Power Supply | 380V/50Hz, 3phase 4lines (can be customized) | ||||||
| Inlet(Outlet) Diameter | mm | 25 | 32 | 42 | 48 | 48 | |
| Net Weight | kg | 50 | 70 | 85 | 105 | 115 | |
| Overall Dimension | L | mm | 500 | 550 | 580 | 600 | 650 |
| W | mm | 320 | 350 | 400 | 450 | 450 | |
| H | mm | 700 | 750 | 800 | 800 | 850 | |
