DYJ High Efficiency Vacuum Lube Oil Purifier
High efficiency vacuum lube oil purifier is developed targeting at the different charcteristics of various lubricationg oil. It is used for processing multiple types of lubricating and is widely applied in elctricity,matallurgy,mine, machinery, chemical engineering traffic, manufacturing, food industry, etc. It can filter gear oil, hydraulic oil, freezer oil, vacuum pump oil.
Download
Description
Product Parameter
| Item | Unit | DYJ-10 | DYJ-20 | DYJ-30 | DYJ-50 | DYJ-100 | DYJ-150 | DYJ-200 | DYJ-300 | |
| Flower Water | L/min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | |
| Vacuum Range | Mpa | -0.06~-0.095 | ||||||||
| Working Pressure | Mpa | ≤0.5 | ||||||||
| Working Temperature |
| 30~90 | ||||||||
| Working Noise | dB(A) | 65 | 68 | 68 | 70 | 75 | 78 | 80 | 85 | |
| Heating Power | KW | 18 | 24 | 36 | 42 | 54 | 66 | 72 | 90 | |
| Total Power | KW | 20 | 26 | 38 | 45 | 57 | 72 | 85 | 105 | |
| Inlet(outlet) Diameter | mm | 25 | 25 | 32 | 42 | 42 | 48 | 48 | 60 | |
| Net Weight | Kg | 320 | 500 | 550 | 650 | 1050 | 1150 | 1450 | 2180 | |
| Over Dimension | L | mm | 1000 | 1100 | 1300 | 1450 | 1500 | 1500 | 1550 | 1600 |
| W | mm | 800 | 900 | 1000 | 1100 | 1200 | 1250 | 1250 | 1300 | |
| H | mm | 1500 | 1600 | 1700 | 1800 | 1850 | 1900 | 1950 | 2000 | |
Product Feature And Application
- The filter elements with different precision consist of fine and multi-stage filtration system, which can effectively remove mechanical impurities in waste oil.
- Special film evaporation and molecule evaporation technology enables quick demulsifying and make the turbid and emulsified oil clear.
- High water content removal: quickly dehydrate oil that even contains water oil half and half.
- Stably automatic and manual electric heating temperature-control system guarantees the o balance oil heating and constant temperature.
- Adopt the dehydration system that need not to be changed for the whole service life.

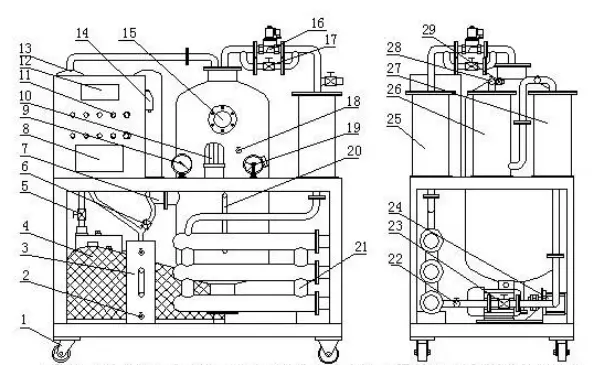

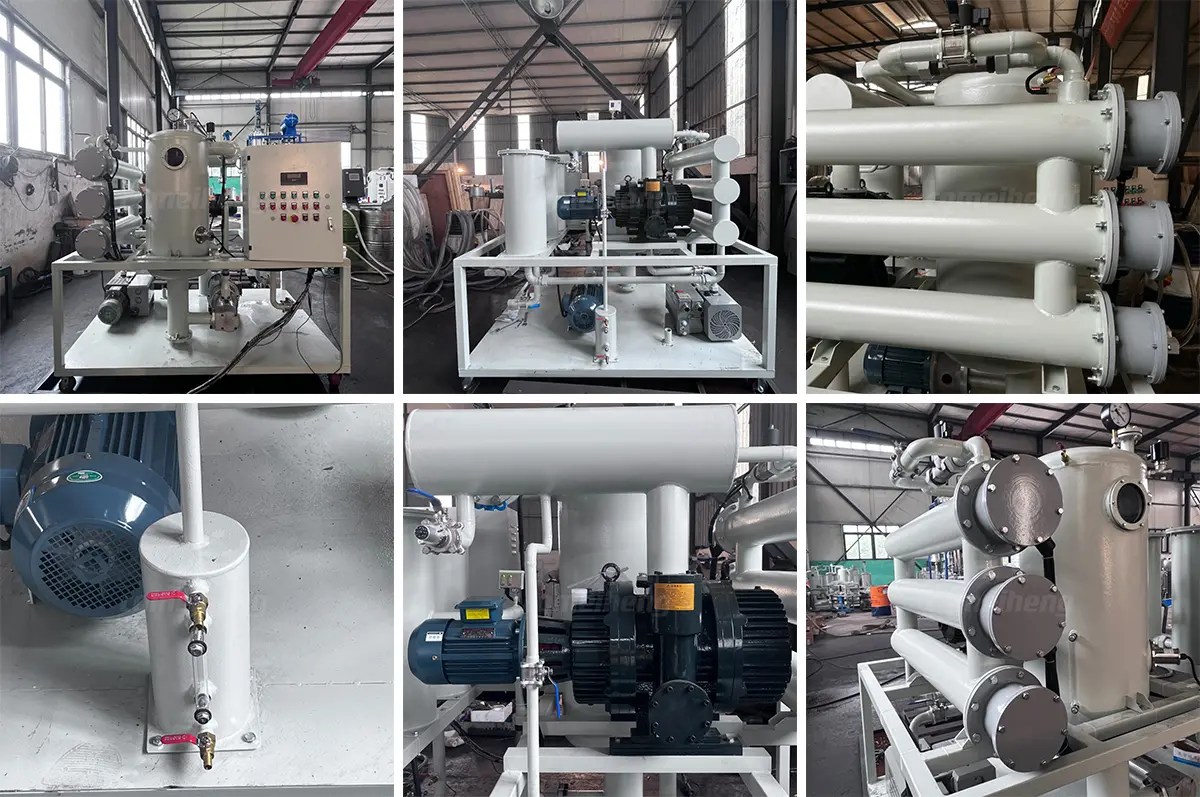

Production Details
| Figure No. | Name | Figure No. | Name | Figure No. | Name |
| 1 | Caster | 11 | Control button | 21 | Heating |
| 2 | Drain water valve | 12 | Temperature controller | 22 | Inlet valve |
| 3 | Water tank | 13 | Condenser | 23 | Circulation valve |
| 4 | Vacuum pump | 14 | Pressure controller | 24 | Oil pump |
| 5 | Vacuum valve | 15 | Observation mirror | 25 | Primary Filter |
| 6 | Block valve | 16 | Magnetic switch | 26 | Fine filter |
| 7 | Level controller | 17 | Bypass valve | 27 | Secondary Filter |
| 8 | Nameplate | 18 | Aeration valve | 28 | Oil outlet |
| 9 | Vacuum gauge | 19 | Pressure gauge | 29 | Sample valve |
| 10 | Alarm light | 20 | Oil standard tube |
|
|
Product Qualification
Delivery, Shipping And Serving
- We will count cheapest shipping cost and make invoice to you at once.
- Check quality again, then send out to you at 5-10 working day after your payment
- Email you the tracking no., and help to chase the parcels until it arrive you.
FAQ
Q1: Are you a trading company or manfacturer?
A:We are a professional oil purifier, production of some products, we have professional engineers, research oil purifier for many years.
Q2: What is consumption of the oil purifier?
A2: Filters. Every 3000hours for a change
Q3: What's the material of vacuum lube oil purifier?
A3: Carbon steel or Stainless steel, also can be customized.
Q4: What's the usage of vacuum oil purifier?
A4:Remove 100% free water and 99.9% dissolved water, 100% free gas, impurities.
Q5: Do you test all models of oil purifier before delivery?
A: Yes, we have 100% test before delivery
